OBDII GPS tracker

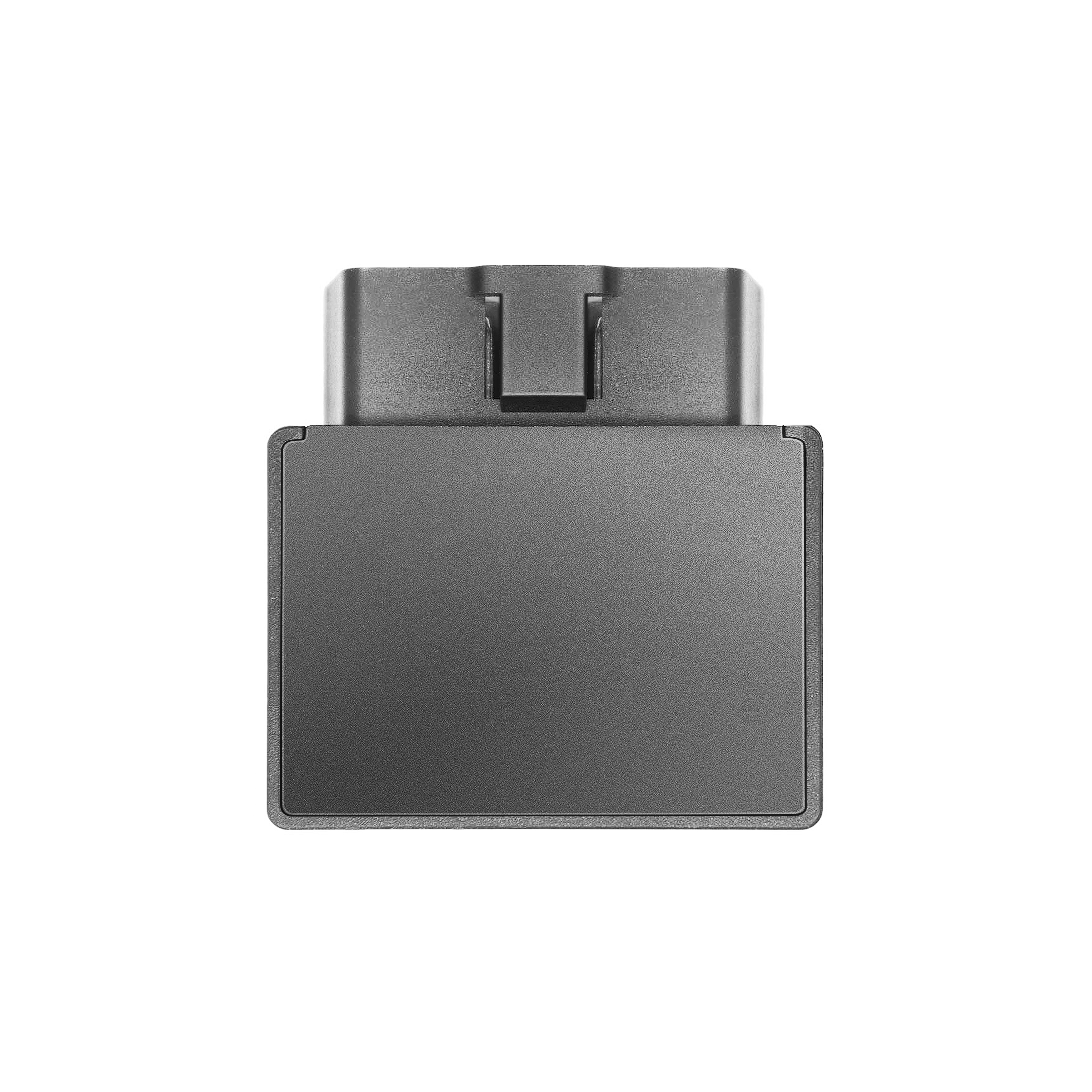

TR92B OBDII GPS tracker with Voice monitoring

FEATURES

◆ Compact Size, Plug and Play

◆ ACC detection

◆ Scheduled Timing Report

◆ Geo-fences

◆ Motion Detection

◆ Power On Report

◆ Unplug alarm

◆ Spy listening

◆ Data storage in blind area & re-upload

◆ Tow Alarm (Can be added in next firmware)

Specification

Content	Specs.
Dim.	50mm x 38mmx25mm
OBD Port	Support 16 pin standard OBDII port.
Network	GSM/GPRS
Frequency	850/900/1800/1900 MHz
GPS chipset	MTK high sensitivity chip
GPS channel	66
Tracking sensitivity	-165dBm
Location accuracy	<10 meters CEP
Time To First Fix(open sky)	Cold status <35s Hot status <1s
Working voltage	9-36VDC
GPRS Protocol	Class12, TCP/IP
Operating temp.	-20°C to +70°C
Standby & Working consumption	5mA~50mA
GSM / GPS antenna	Built-in
G-Sensor	Support
Geo-fence	Support
Angle change upload location	Support
Ignition status detection	Support
Memory Capacity	1400 positions
