3G GPS tracker

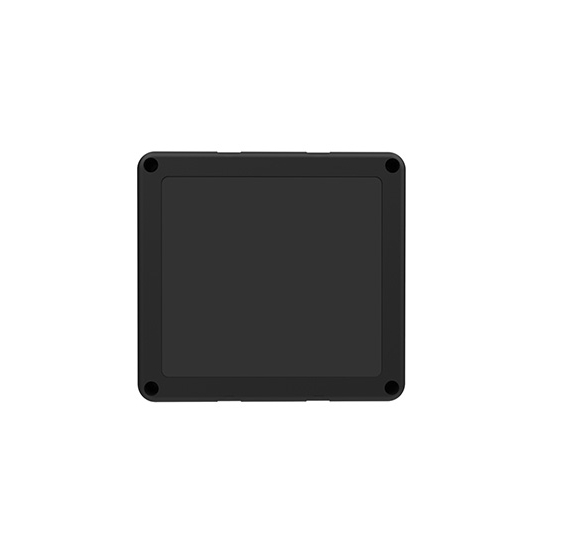

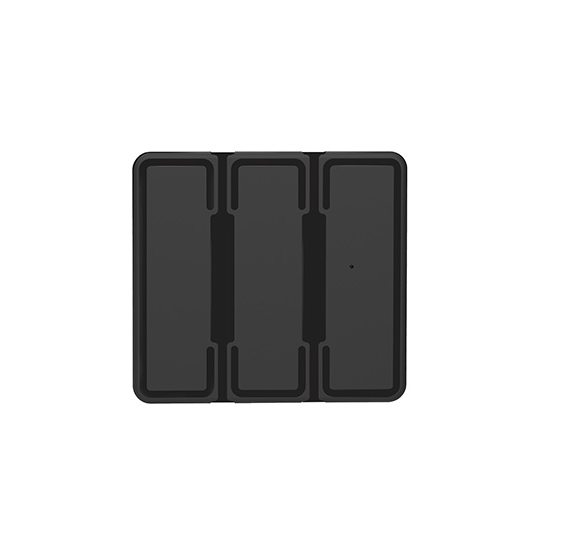

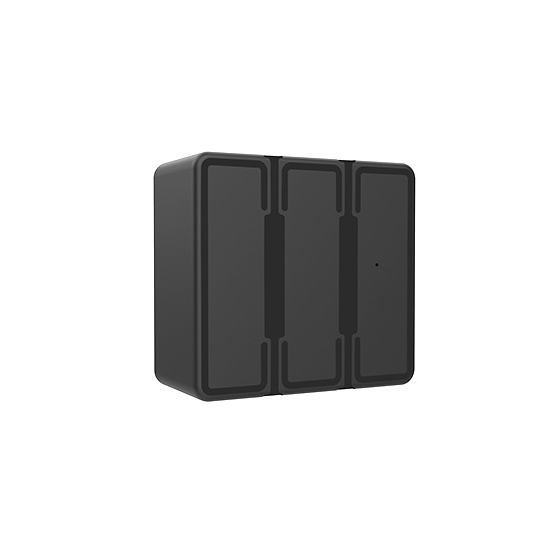

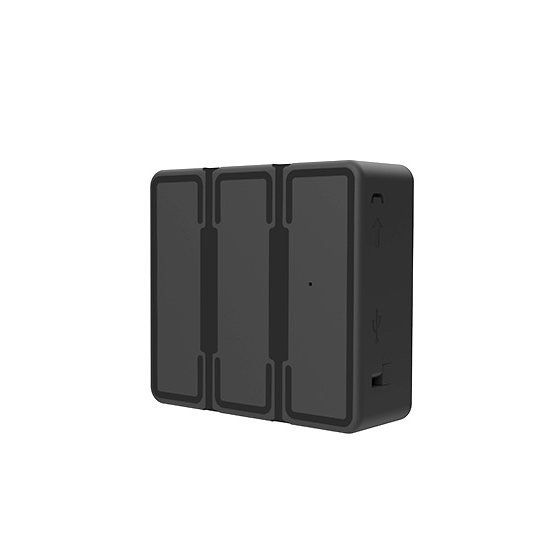

GT07-3G strong magnet GPS tracker with long battery life

  • strong magnet GPS tracker
  • portable GPS tracker
  • long battery life GPS tracker
  • Product description: 1. Free installation 2. Strong magnet 3. 10000mAh Li-Po rechargeable battery 4. Alarm: Towing alarm, Over-speed alarm 5. Can connect with temperature sensor
  • INQUIRY


Key Features

l        Stable & Practical Functions

l        Quad Band GSM, Enable to Work Worldwide

l        U-Blox GPS Chip, 56 Channels, Accuracy:10m

l        ACC detecting, Geo-fence

l        Alarm: Towing alarm, Over-speed alarm, External power cut alert, Geo-fence alert

l        Different reporting interval basing on Acc on/off, Daily report per 24 hours to your mobile phone

l        90 days standby.

l        SMS & Web tracking available

l        Map Link Available on SMS Query

l        Weather-Proof IP66 design


Model

GT07-3G

GT07-4G

Operation Voltage

DC 3.4V-4.5V

Battery

10000mAh (3.7V)

Operating Temperature

-20 to 70 °C

Storage Temperature

-30 to 80 °C

Operating Humidity

5% to 95% Non-condensing

GPS/GSM Antenna

Built-in

4G LTE Bands

North America: B2/B4/B12

EMEA/Asia: LTE-FDD: B1/B3/B5/B7/B8/B20

LTE-TDD: B38/B40/B41

Latin America/AU: LTE-FDD: B1/B2 /B3/B4/B5/B7/B8/B28

LTE-TDD: B40

UMTS/WCDMA Bands

Europe/Asia Pacific:

UMTS: B1/B8

Global: UMTS: B1/B2/B5/B8

GSM: 900/1800 MHz

EMEA/Asia: B1/B5/B8

Latin America/AU: B1/B2/B5/B8

North America: B2/B4/B5

GSM/EDGE Band

Europe/Asia Pacific: 900/1800 MHz

Global: 850/900/1800 /1900MHz

EMEA/Asia: B3/B8

Latin America/AU: B2/B3/B5/B8

GPS Frequency

L1, 1575.42MHz

C/A code

1.023MHz chip rate

Channel

56 channels all-in-view tracking

Position Accuracy

10meters, 20RMS

Velocity Accuracy

0.1m/s

Time Accuracy

1 microsecond satellite time Synchronize

Sensitivity

Tracking: 162 dBm

Hot starts

Average 1 sec

Warm Start

Average 30sec

Cold starts

Average 32 sec.

Dimensions

110x75x25mm (LxWxH)

Weight

300g(including battery)
